360 CASSETTE FCU

CAPACITY RANGE 400CFM ~ 1500CFM

The KENDO Chilled Water Fan Coil Unit are designed and manufactured base on advance technology, qualify structure and high quality material. Compact design, beautiful outlook, space saving design, easy installation and maintenance friendly are common advantages for all FCU product. The KENDO chilled water fan coil unit model type contain ceiling universal, floor standing, medium ESP ducted, cassette and wall mounted. The varies air volume from 200CFM to 1500CFM can be choose to suite the room size and capacity requirement.

360 PANEL

  • Designed with 360 corner large air flow outlet with auto air swing function to provide smooth and high discharge air flow.

FRESH AIR INTAKE

Fresh air makes indoor air more healthy, fresh and comfortable (for model 600 ~ 1500 CFM)

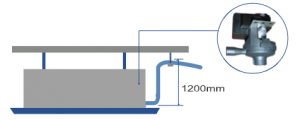

BUILT-IN DRAIN PUMP

All unit come with standard built-in drain pump can lift drain water up to 1.2m heigh from the drain pan

FIRE PROOF ELECTRICAL BOX

Fire proof electrical box enhance electrical safety and designed with maintenance friendly

CEILING UNIVERSAL FCU

CAPACITY RANGE 400CFM ~ 1200CFM

4D AIR DIRECTION

  • Vertical and horizontal control swing make air distribute to every corner

ULTRA SLIM DESIGN

Body thickness only 205mm, minimize the installation space.

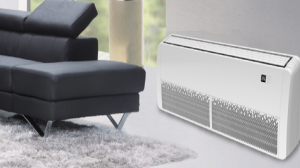

FLEXIBLE INSTALLATION

Can be vertically installed against the wall or horizontal installed under the ceiling

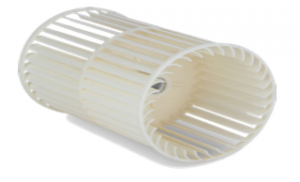

INNOVATIVE CENTRIFUGAL FAN DESIGN

All unit design with 3 speed fan motor combining with innovative centrifugal fan to produce large air flow volume with lower operation noise.

MID ESP DUCT FCU

CAPACITY RANGE 300CFM ~ 1400CFM (30Pa & 12Pa)

FLEXIBLE INSTALLATION

Air intake form rear side is standard, from bottom side is optional. The size of plate from bottom side same as the flange from rear side, makes it convenient to change due to different decoration requirement.

FRESH AIR INTAKE

Fresh air makes indoor air more healthy, fresh and comfortable.

OPTIONAL ESP

30Pa Standard and 12Pa Optional

WATER PIPE DIRECTION

Left hand (Standard) or right hand (Optional) hand water supply or drain pipe direction can be choose

WALL MOUNTED FCU

CAPACITY RANGE 200CFM ~ 750CFM (30Pa & 12Pa)

AIR DIRECTION

The Swing Louver function ensures that the air direction corresponds to the mode selected (step or auto swing)

CONVENIENT INSTALLATION

Multi directional outlet pipe feature: left \ right \ rea, to meet the needs of different piping arrangement.

MAINTENANT FRIENDLY

Removable front panel making maintenance convenient

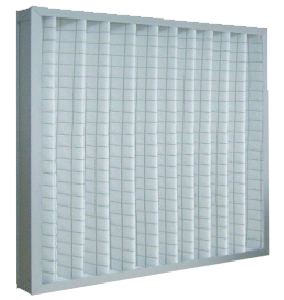

COME WITH STANDARD WASHABLE AIR FILTER

Saran Net

UV-Air Sterilizer Kit

Converting Your Air Conditioner Into Powerful Air Sterilizer

KENDO UV-Air Sterilizer Kit is designed for mini-splits and similar limited space applications. Like all A/C systems, mini-splits are prone to internal mold growth and microbial contamination, particularly on and near the evaporator and blower wheel. This UV-Air Sterilizer Kit is to sterilize the airborne and surfaces contamination while having no impact on plastic materials.

Benefits

-Improves indoor air quality
-Maintains a clean evaporator and drain pan free from mold and microbial growth
-Saves energy/reduces maintenance costs
-Extends life of Air Conditioner

Features

-Fits all type Air Conditioner systems
-Covered up to 700CFM for 1 set
-100-240V 50/60Hz VAC power supply
-20,000 hours expected LED life
-1 year warranty on all parts

Model ASK101 ASK102
Power Supply AC 100~240V /1Ph/ 50/60Hz
Rated Power 7-10W
Coverage Suitable airflow : 700cfm (1,190m3/h) and below
Operating Conditions Temperature: -30°C~65°C (-22°F~149°F)
UV-A Total 0.7W 1,400mW 395~405nm 20,000hrs (2 pcs)
UV-C Total 0.6W 40mW 265~280nm 20,000hrs (4 pcs) Total 0.8W 60mW 265~280nm 20,000hrs (6 pcs)
Photocatalyst Filter 215 * 50mm with Tio2 coating 2.5g (4 pcs)



Product Dimension (W*D*H) LED Strip – 225 * 13 * 5 mm (2 pcs) Driver – 60 * 23 * 30 mm (1 pc) Switch – 61 * 20 * 19 mm (1 pc)

Packaging – 255 * 53 * 138 mm



LED Strip – 620 * 13 * 5 mm (1 pcs) Driver – 60 * 23 * 30 mm (1 pc) Switch – 61 * 20 * 19 mm (1 pc)

Packaging – 660 * 53 * 68 mm



Net Weight 0.15 kg 0.15 kg
Gross Weight 0.34 kg 0.34 kg

Pre-Filter

Large dust & allergens,
Hair, Animal fur, dander and dirt particles.

HEPA13 Filter

Eliminates dust, pollen, mite, fur cigarette smoke, food odor, aimal odor, toilet odor, waste gas, germs, bacteria.

Active Carbon Filter + Cold Catayst

Remove Poison Gas, VOCs

UVC & UVA LED &
Photocatalyst

Kills 99.9% viruses, bacteria and fungus

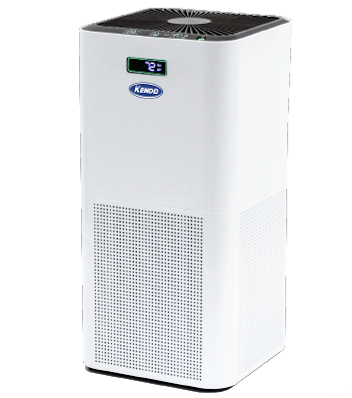

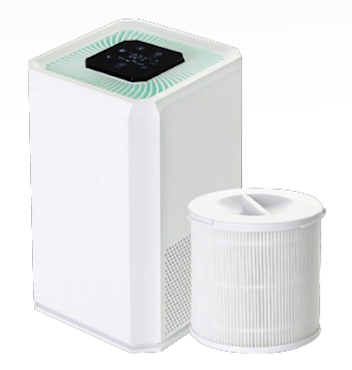

ASF01

Input Voltage

220-240 VAC 50Hz

Filter

Pre filter, Hepa H13 filter and Active carbon filter + Cold Catalyst

Sterilise

UV-C and UVA with Photocatayst

CADR

130m3/hour

Acoustic Noise

Max 50dB

Dimension

200 x 200 x 310mm

Net Weight

2.1Kg

Application Area

15 – 20 m3

Application

Office, Public Toilet, Hotel lobby, hospital, kitchen, Convenient Store and others

ASF02

Input Voltage

220-240 VAC 50Hz

Filter

Pre filter, Hepa H13 filter and Active carbon filter + Cold Catalyst

Sterilise

UV-C and UVA with Photocatayst

CADR

480m3/hour

Acoustic Noise

Max 50dB

Dimension

280 x 280 x 570mm

Net Weight

7.5Kg

Application Area

60 m3

Application

Small office, Public Toilets, Kitchen, Hotels and others

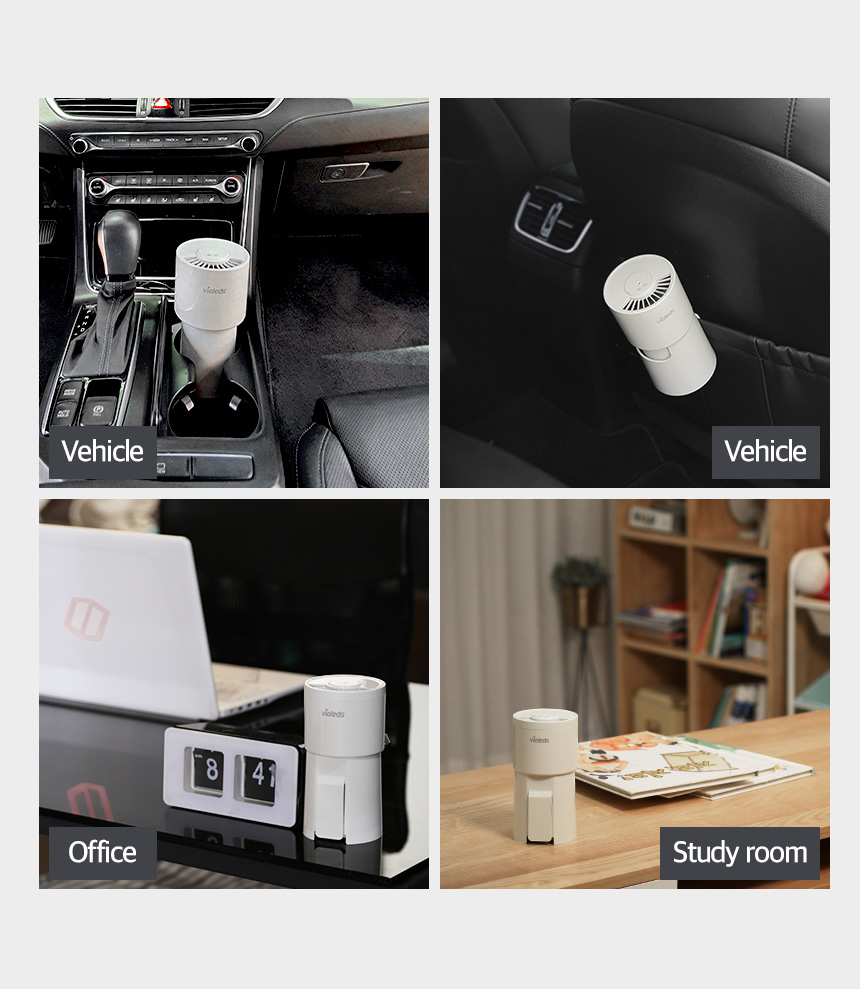

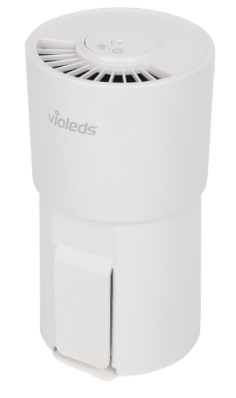

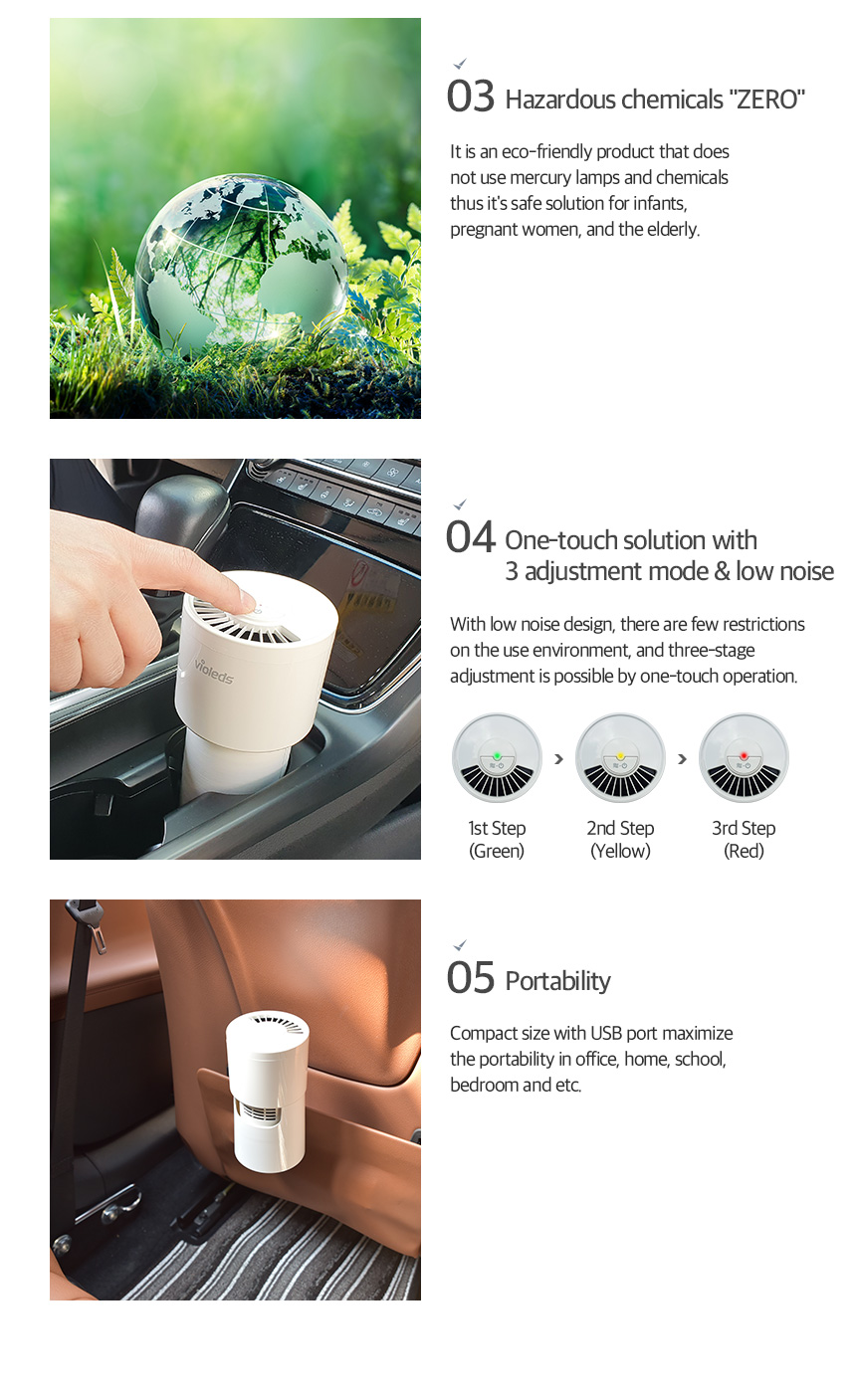

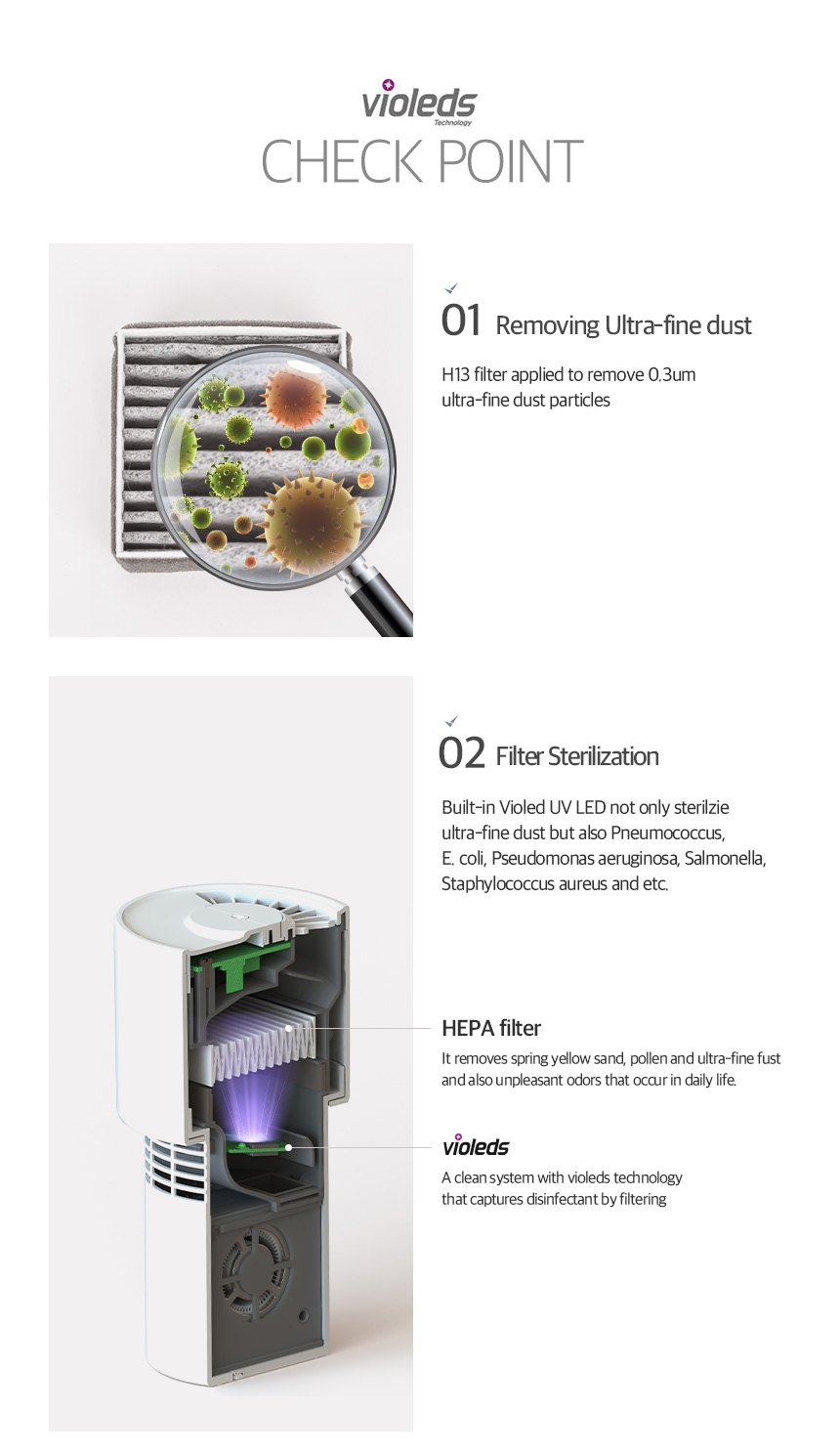

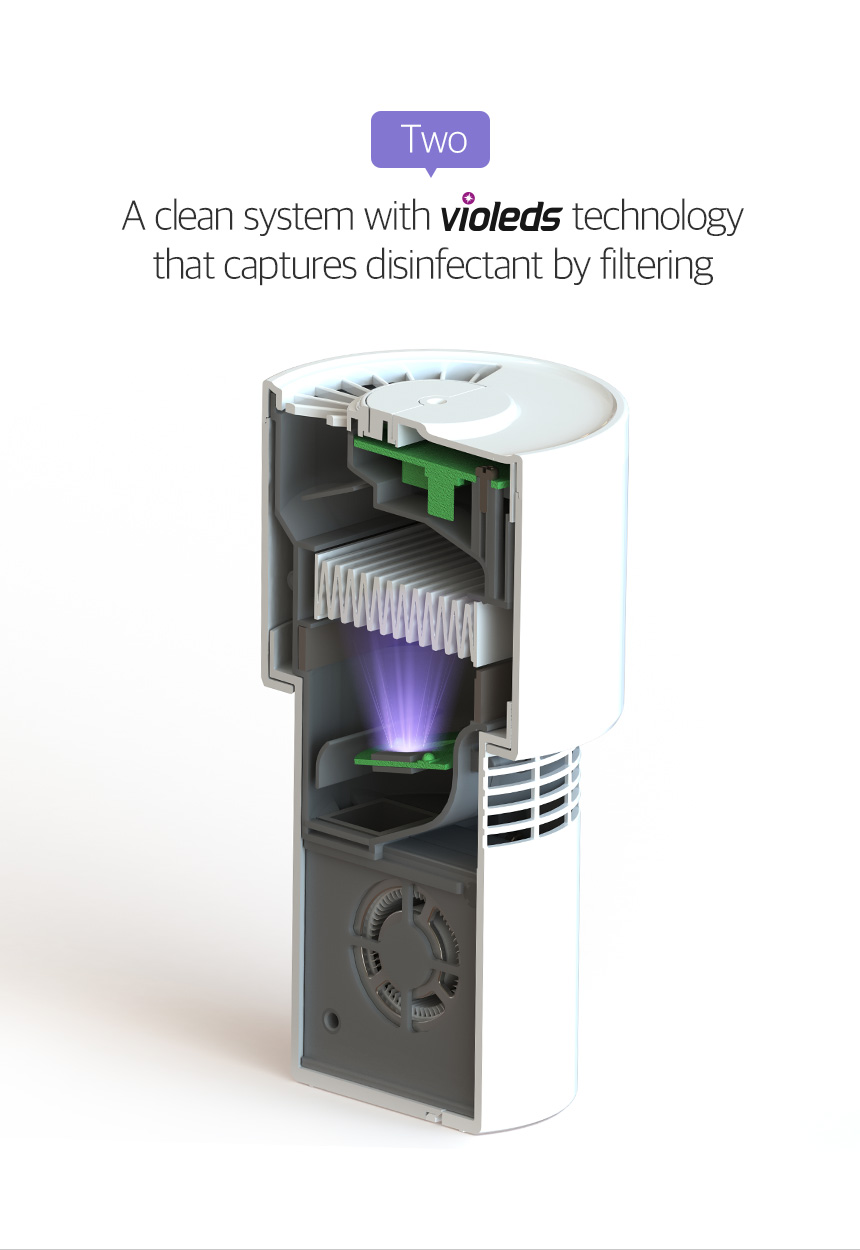

VAC

Product Name

Air Purifier

Function

Deodorisation / Disinfection / Removing PMs / Removing VOCs

Disinfection Technique

Violeds + HEPA(with Carbon)

Dimension

85mm x H160mm

Product Color

White

Weight

300 g

Power Consumption

4.5 W

Coverage

CADR 8m / hr

Charging Terminal

Micro 5 pins

Input Voltage

5Vdc

Power Cable

USB type A 03.5mm DC

Certification

KC, CE, FCC, MET, RoHS

IS 1

Standard Model for Indoor and Semi-Outdoor Use

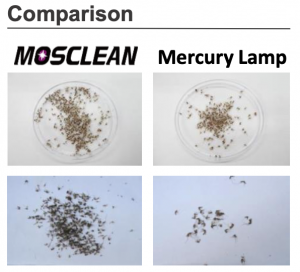

5x More Effective than Mercury Lamp Traps

MOSCLEAN Mosquito Traps catch > 5x more Aedes aegypti mosquitoes that are the vector of ZIKA virus and cause microcephaly than conventional mercury lamp traps.

Non-Hazardous

No pesticides and no chemicals: chemical-free and safe solution to insect pests

Indoor & Semi-Outdoor

It can also be used outdoor with net container, portable battery and DC booster

Low Maintenance

Violeds technology uses reliable and energy efficient LEDs for lower energy cost without consumable parts. Running our mosquito trap for 24/7 will solve your mosquito problem for just $0.43 a month*.

Product Name

MOSCLEAN IS1

Use

Indoor, Semi-Outdoor

Main Function

Mosquito Trap

Mode of Action

Dehydration

Size

Ø 200 × 232 mm (H)

Color

Black / White

Weight

359g

Attractant Source

Optimized UV LEDs + CO2

Power Consumption

4W (Max)

Input Voltage

DC 12V Adaptor, 100~240V

Coverage

0.5 acre (2,023 m2)

Certification

KC, CE, RoHS, MET, FCC

Noise

Typical 28.3dB(A)

Installation

Hang Hole / Stand-alone

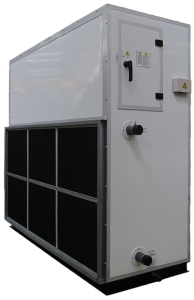

AHU VERTICAL

Product Range:
Capacity Range:
Refrigerant: –

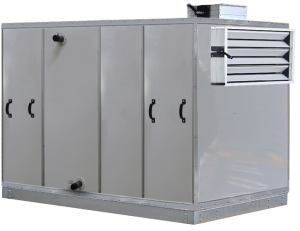

AHU HORIZONTAL

Product Range:
Capacity Range:
Refrigerant:

SINGLE SPLIT DUCT

FLOW MASTER SERIES

KENDO High Static Ducted units are designed for air-conditioning system in commercial and industrial application comprises various model with complete range fo equipment from 8hp to 60.0 hp for indoor units and 8hp to 20hp for outdoor units.

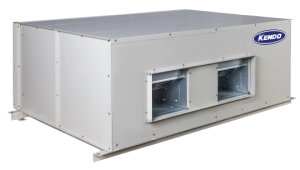

SINGLE SKIN INDOOR UNIT (8 – 15hp )

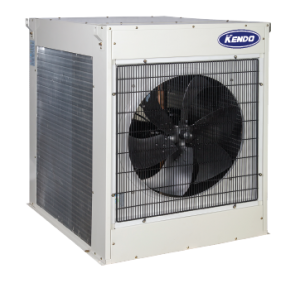

OUTDOOR UNIT (10hp & 12.5hp)

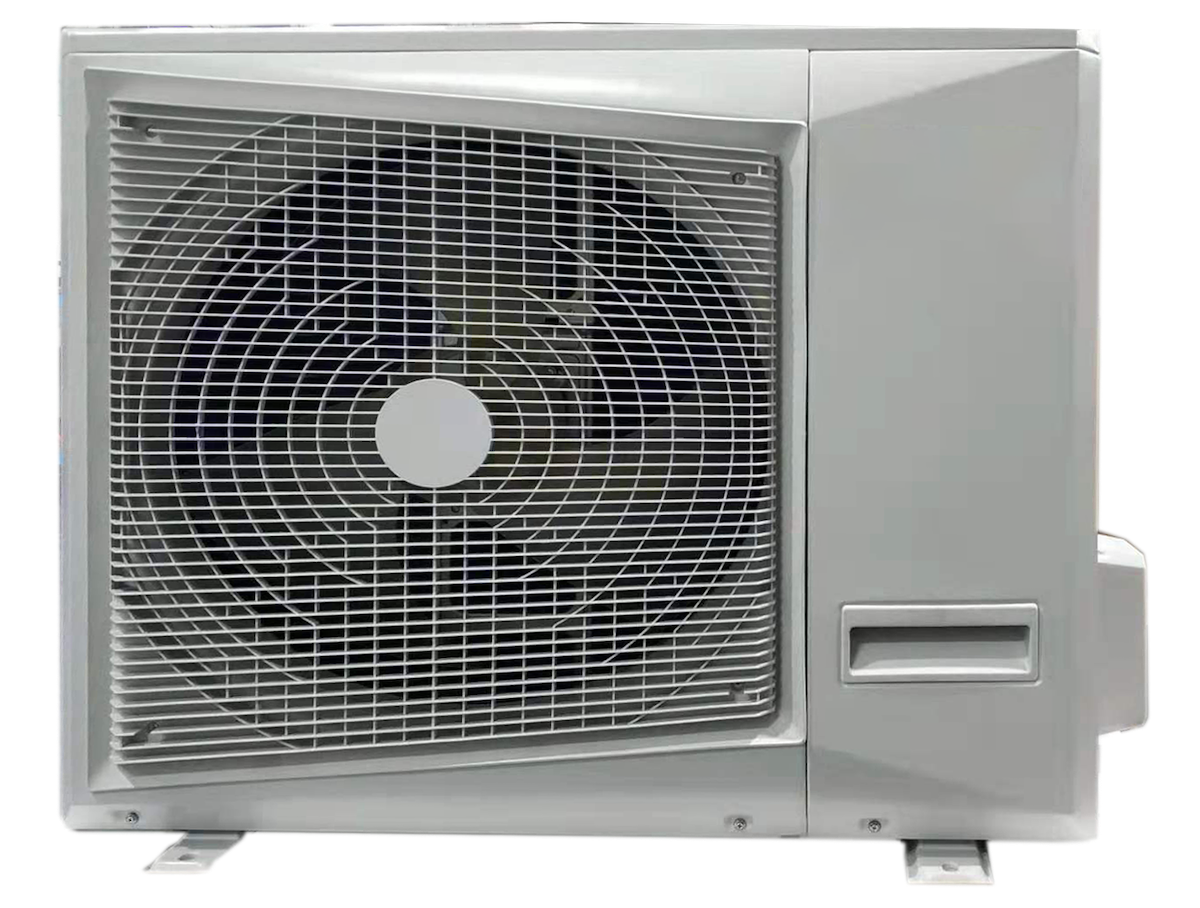

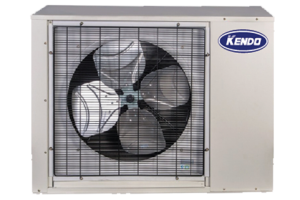

OUTDOOR UNIT (8hp)

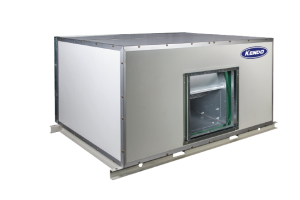

DOUBLE SKIN INDOOR UNIT (20 ~ 60hp)

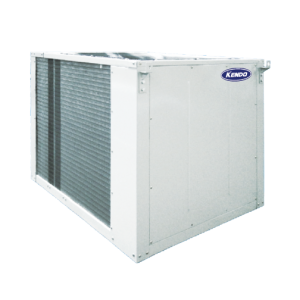

OUTDOOR UNIT (20hp)

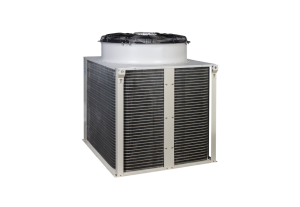

OUTDOOR UNIT (15hp)

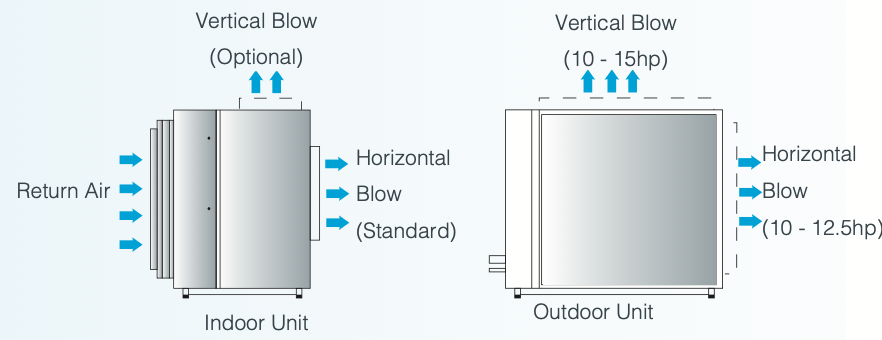

STRONG AIR FLOW

A belt driven drive package (12.5Hp indoor and above) offer flexibility on various air flow rate and various static pressure application. Design with high external static pressure to make sure the air distribution is even to every corner with long ducting application. Flexible changing the external static pressure and air flow by adjusting the 3 fan speed (8.0 ~ 10.0 hp) or changing the pulley size (12.5 ~ 60.0 hp) provide more flexibility in installation and produce optimum cooling and comfort.

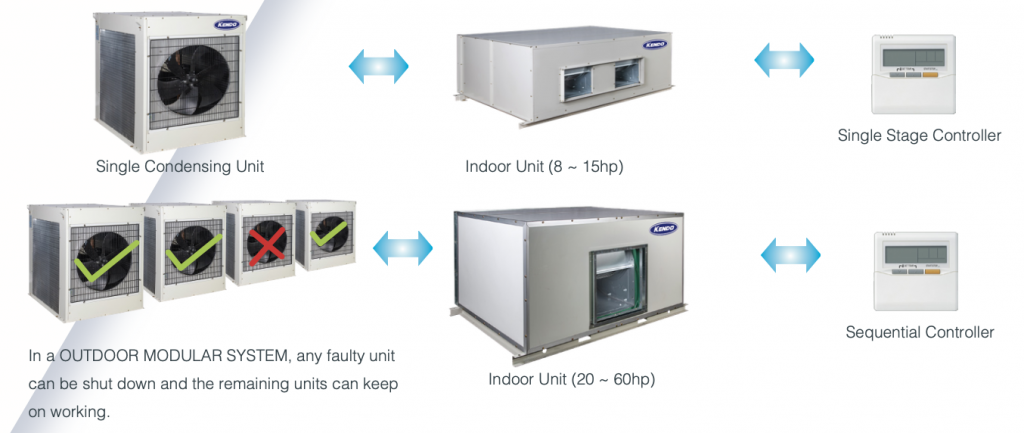

PART LOAD WITH MULTI CIRCUIT DESIGN

The unit has single (8.0 ~ 15.0 hp) and multiple hermetic scroll compressors (20.0 ~ 60.0 hp) with independent refrigerant circuit. Each refrigerant circuit consists of a high efficiency compressor and condenser. With this modular system configuration combining with microprocessor controller allows the units to operate under partial load condition to meet the cooling capacity demand. No total shut down when servicing or repairing a faulty compressor or outdoor units.

FLEXIBLE APPLICATION & INSTALLATION

The indoor and outdoor unit allows you to choose the air discharge direction for either horizontal or vertical air discharge application (Optional). This package is optional and need to confirm before do the ordering.

HIGH QUALITY CASING

The indoor casing is constructed with powder coated electro galvanized mild steel sheet and insulated with 1/2” (13mm) thick 24kg/m3 PE foam (8.0 ~ 15.0hp) or 1” (25mm) thick double skin panel injected with polyure-thane foam (PU) insulation with “K” value of 0.02Watt/°C

HIGH EFFICIENCY HEAT EXCHANGER

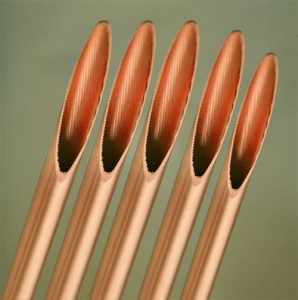

Each coil consist of staggered row of 3/8” OD seamless copper tubes, mechanically
expanded into die-formed aluminum fins. The evaporator coil come standard with hydrophilic coated fin to ensure optimum system effectiveness and durability. The condenser coil provided with integral sub-cooling circuit to maximize energy efficiency and promote superior match-system operating performance when connected to suitable sized DX Evaporator-Blower unit. Coils are leak and pressure tested to 450psig while storage pressure is keep at 100 Psig.

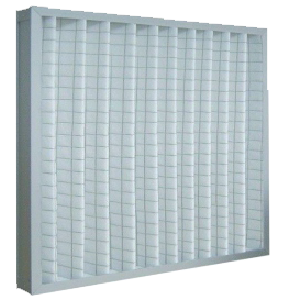

AIR FILTER

The Indoor unit come with washable synthetic fibre air filter. Designed with easy withdrawal and renewal of filter cells. HEPA, AAF and many type of air filter can be requested to meet the requirement and building application.

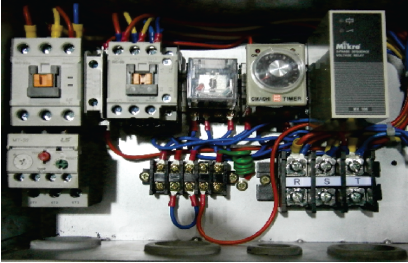

SAFETY FEATURES

Built in internal overload protection for compressor. All outdoor units are equipped with auto reset high pressure and low pressure cut-out to protect against compressor damage due to high head pressure and system leakage respectively.

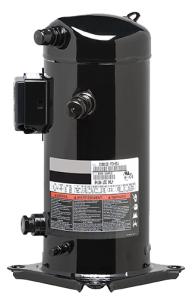

HIGH PERFORMANCE SCROLL COMPRESSOR

Adopting very famous brand with a special low noise, low vibration and high performance scroll compressor. Possesses a high Energy Efficiency Ratio (EER) delivering exceptional performance with a reduction in energy consumption. 100% gas cooler motor with internal line breaker or solid state motor protectors.

INTELLIGENT CONTROLLER

All the features can be easily set and change through microprocessor controller. It ensures comfortable cooling is delivered to the user with user friendly wired keypad controller. Wide range of control features including mode, temperature setting, timer, self diagnosis error code and etc.

MULTI SPLIT DUCT

FLOW MASTER SERIES

KENDO High Static Ducted multi split units are designed for air-conditioning system in commercial and industrial application. This unit has multiple hermetic compressors with independent refrigerant circuit in single foaming condenser coil.

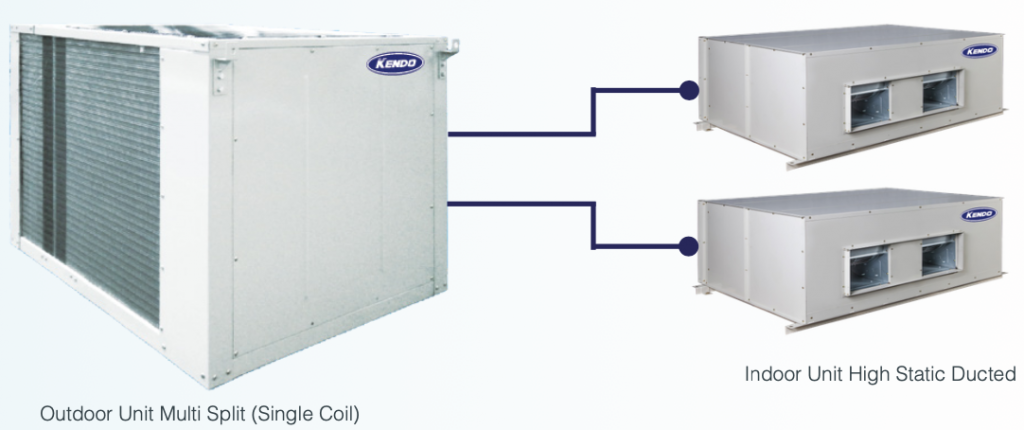

OUTDOOR UNIT MULTI SPLIT

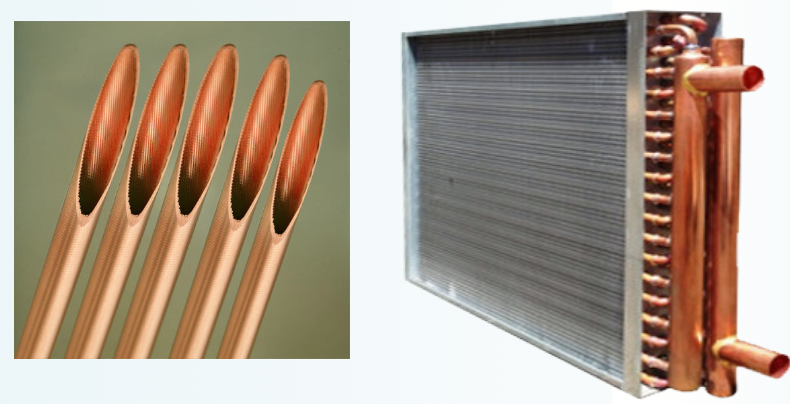

STRONG AIR FLOW

Each coil consist of staggered row of 3/8” OD seamless copper tubes, mechanically expanded into die-formed aluminum fins.The evaporator coil come standard with hydrophilic coated fin to ensure optimum system effectiveness and durability.The condenser coil provided with integral sub-cooling circuit to maximize energy efficiency and promote superior match-system operating performance when connected to suitable sized DX Evaporator-Blower unit. Coils are leak and pressure tested to 450psig while storage pressure is keep at 100 Psig.

HIGH PERFORMANCE SCROLL COMPRESSOR

Adopting very famous brand with a special low noise, low vibration and high performance scroll compressor. Possesses a high Energy Efficiency Ratio (EER) delivering exceptional performance with a reduction in energy consumption. 100% gas cooler motor with internal line breaker or solid state motor protectors.

SLIM INDOOR DESIGN

The indoor casing is constructed with powder coated electro galvanized mild steel sheet and insulated with 1/2” (13mm) thick 24kg/m PE foam. Slim indoor design with body height 17.5” (440mm). The internal vents are easily accessible by removing the service panels.

HIGH QUALITY CASING

The indoor and outdoor casing is constructed with powder coated electro galvanized mild steel sheet and insulated with 1/2” (13mm) thick 24kg/m3 PE foam

SAFETY FEATURES

Built in internal overload protection for compressor. All outdoor units are equipped with auto reset high pressure and low pressure cut-out to protect against compressor damage due to high head pressure and system leakage respectively

AIR FILTER

The Indoor unit come washable synthetic fibre air filter. Designed with easy withdrawal and renewal of filter cells. HEPA,AAF and many type of air filter can be requested to meet the requirement and building application.

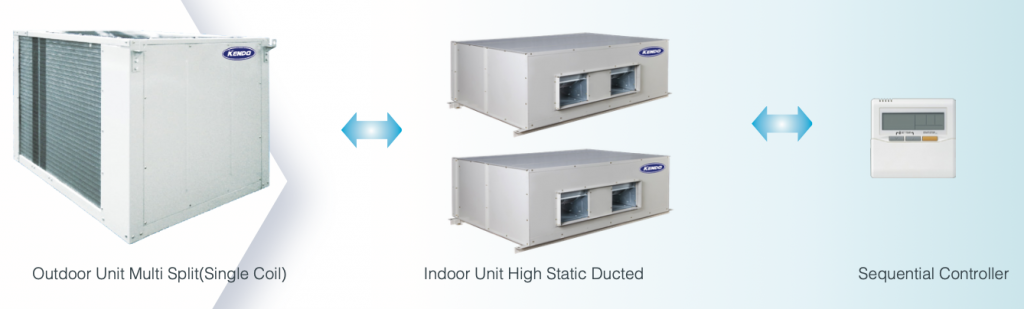

PART LOAD WITH MULTI CIRCUIT DESIGN

The unit has multiple hermetic scroll compressors with independent refrigerant circuit in single foaming condenser coil. Each refrigerant circuit consists of a high efficiency compressor and condenser. With this modular configuration combining with microprocessor controller allows the units to operate under partial load condition to meet the cooling capacity demand.

INTELLIGENT CONTROLLER (OPTIONAL)

All the features can be easily set and change through microprocessor controller. It ensures comfortable cooling is delivered to the user with user friendly wired keypad controller. Wide range of control features including mode, temperature setting, timer, self diagnosis error code and etc.

DESERT SERIES

  1. Cooling capacity test condition (1): Outdoor ambient temperature: 35°C, indoor temperature 26.7°C DB / 19.4°C WB;
    Cooling capacity test condition( 2): Outdoor ambient temperature: 46°C , indoor temperature: 29°C DB/19°C WB.;
  2. Units are suitable for operation to ±20% of nominal CFM;
  3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.
  4. Specifications are subject to change without prior notice for product improvement.
  5. * Nominal ton only for reference.
  6. EHK means Electric Heater Kit. Only one EHK can be optional to fix per unit.

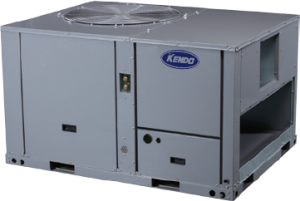

CLIMACREATOR SERIES

  1. 1. Cooling capacity test condition (1): Outdoor ambient temperature: 35°C, indoor temperature 26.7°C DB / 19.4°C WB;
    Heating capacity test condition (2): Outdoor ambient temperature: 7°C DB / 6°C WB, indoor temperature 20°C DB / 15°C WB;
  2. Units are suitable for operation to ±20% of nominal CFM;
  3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.
  4. Specifications are subject to change without prior notice for product improvement.
  5. * Nominal ton only for reference.

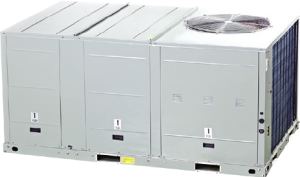

CLIMAMASTER SERIES

  1. Cooling capacity test condition: Outdoor ambient temperature: 35°C, indoor temperature 26.7°C DB / 19.4°C WB;
  2. Heating capacity test condition: Outdoor ambient temperature: 7°C DB / 6°C WB, indoor temperature 20°C DB / 15°C WB;
  3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.
  4. Specifications are subject to change without prior notice for product improvement.
  5. Nominal ton only for reference.

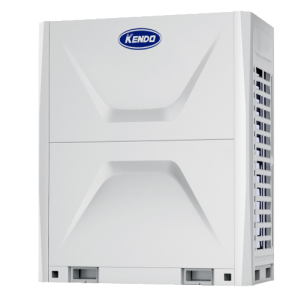

OUTDOOR VRF

Product Range:
Capacity Range:
Refrigerant: –

INDOOR WALL VRF

Product Range:
Capacity Range:
Refrigerant:

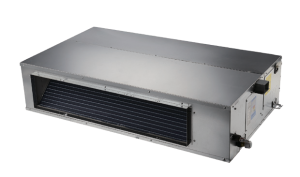

INDOOR DUCTED VRF

Product Range:
Capacity Range:
Refrigerant:

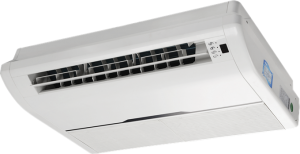

INDOOR CEILING VRF

Product Range:
Capacity Range:
Refrigerant:

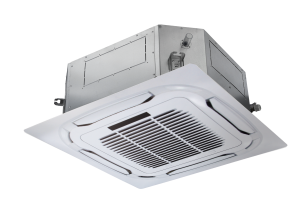

INDOOR CASSETTE VRF

Product Range:
Capacity Range:
Refrigerant:

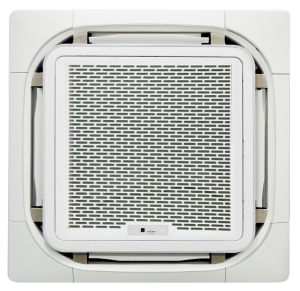

360° CASSETTE

FIX SPEED, T1, 50Hz, COOLING ONLY, CH-SERIES

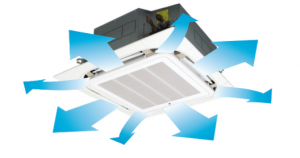

360° Panel.

Design with 360° air discharge, large corner airflow outlet with an auto air swing function to provide smooth and high discharge airflow. Aerodynamic turbo fan enhances strong airflow for better air circulation and air distribution.

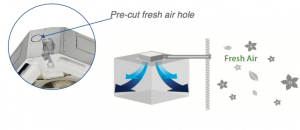

Fresh Air Intake

Fresh air makes indoor air more healthy, fresh and comfortable.

Built-in Drain Pump

All units come with standard built-in drain pump that can lift drain
water to 1.2m height from the drain pan.

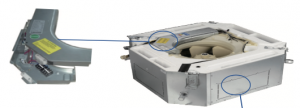

Fire Box Electrical Box

Fireproof electrical box enhances electrical safety and designed with maintenance-friendly.

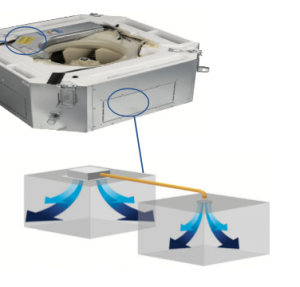

Pre-Cut Extended Duct Hole

Cold air can be duct to any corner for better and flexible air distribution.

4D Air Swing

Vertical and horizontal control swing make air distributes to every corner.

Ultra Slim Design

Body thickness from 235mm to 285mm can minimize the installation space.

Innovative Centrifugal Fan Design

By applying 3-speed fan motor and combining with the innovative centrifugal fan can produce large airflow volume and low operation noise.

Flexible Installation

Can be vertically installed against the wall or horizontally installed under the ceiling.
